2 - axis 4 - gimbal Air - borne Electro Optical Sensor System For Surveillance and Tracking

  • 1
  • 2

Brand Name : JOHO

Model Number : JH602-42021

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, L/C,, Western Union, MoneyGram

Supply Ability : 50Sets/Year

Delivery Time : negotiation

Packaging Details : Standard Safety Equipment Case

Gyro Stabilised Gimbal : 2 Axis

Sensor : HD CCD and IR Thermal Imager

Weight : 45kg

Dimension : Φ430mm×640mm

Application : Unmanned Ship, Unmanned Vehicle, Usv, Uav

esolution : 1920x1080

Stabilization accuracy : 25μrad

Power Supply : DC24~36V

Power consumption : ≤500W

Laser Range : 300m～10km

Detector : MWIR Cooled MCT FPA

Spectral Band : 3~5μm

Contact Now

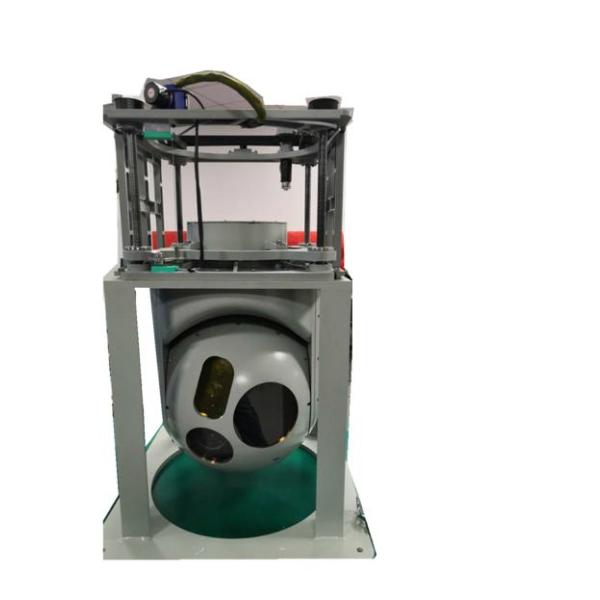

2-axis 4-gimbal Air-borne EO/IR Surveillance and Tracking Gimbal

JH602-42021 gimbal is a highly integrated optical-mechanical-electro system provided for helicopter, UAV, transport plane and other aircrafts for surveillance and reconnaissance. The gimbal slaves to a 2-axis 4-gimbal gyro stabilized platform to implement LOS (line of sight) movement in azimuth and elevation direction. Under servo control, the gimbal overcomes carrier disturbance and provides a stabilized platform for sensors unit. The sensor unit is equipped with a MWIR cooled IR thermal camera with continuous zoom lens, and a HD daylight camera for all-weather operation, 10km laser range finder is provided for real-time measurement target distance.

Function

  • Isolate carrier disturbance and stably output IR & visible video/image;

  • Observation and detection targets at day and night
  • Auto/manual tracking target
  • Measuring target distance by laser range finder
  • Real-time provide target azimuth angle, elevation angle and distance at high accuracy
  • Real-time output TV/IR composite video with characters to display
  • System make self-test and report self-test result

Technical Specifications

System Specification
Stabilized platform 2-axis 4-gimbal
Azimuth coverage N×360°continuous
Elevation -110°~+20°(0°is horizontal ahead)
Stabilization accuracy 25μrad(1σ)
Angular accuracy ±0.1°(1σ)
Physical Specification
Dimension ≤Φ430mm×640mm
Weight ≤45kg
Color Airplane grey
Interface
Video interface Synchronous RS422
Communication interface Asynchronous RS422
Environmental Specification
Operation temperature -40℃～+60℃;
Storage temperature -50℃～+70℃
Power supply
Gimbal

DC24~36V,

steady power consumption: ≤500W;
Control box

DC24V, range 18V～36V;

Steady power consumption: ≤3W
Thermal Camera Specification
Detector MWIR Cooled MCT FPA
Spectral band 3~5μm
Pixel 640×512
FOV 26.19°×20.95°~1.31°×1.05°
Detection distance 10Km (2.3m×2.3m vehicle)
Recognition distance 8Km (2.3m×2.3m vehicle)
Daylight Camera
Sensor Colorful CCD
Resolution 1920×1080(16:9)
FOV 19.5°×10.88°~0.79°×0.44°
Detection distance 14km (2.3m×2.3m vehicle)
Recognition distance 11km (2.3m×2.3m vehicle)
Laser Range Finder
Wavelength 1.06μm
Measurement Range 300m～10km (visibility 23Km, target 2.3m×2.3m)
Measurement accuracy ≤±5m
Measurement rate ≥98%

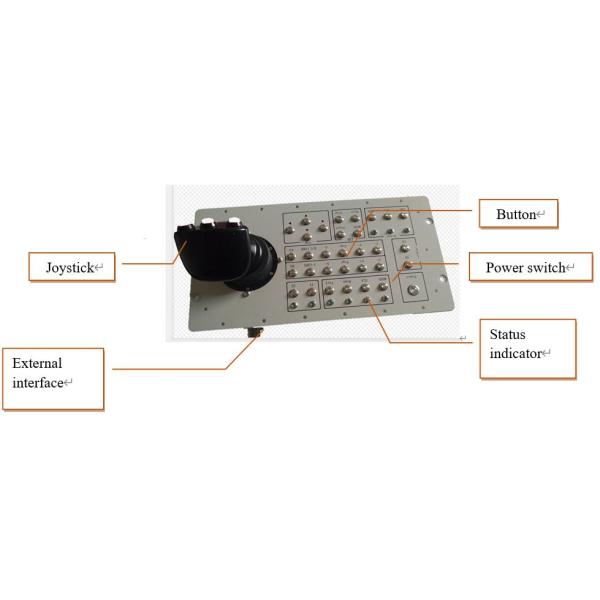

Control Box

As the command center of the system, the control box control content includes: joystick, working mode switching, thermal image and daylight image adjustment, laser ranging, target tracking, gimbal motion control, etc

  • Make optical axis alignment of EO sensors
  • Receiving target designation from other navigation equipment and automatically turns direction to start recognition and tracking target.2 - axis 4 - gimbal Air - borne Electro Optical Sensor System For Surveillance and Tracking

  • 2 - axis 4 - gimbal Air - borne Electro Optical Sensor System For Surveillance and Tracking2 - axis 4 - gimbal Air - borne Electro Optical Sensor System For Surveillance and Tracking

2 - axis 4 - gimbal Air - borne Electro Optical Sensor System For Surveillance and Tracking2 - axis 4 - gimbal Air - borne Electro Optical Sensor System For Surveillance and Tracking2 - axis 4 - gimbal Air - borne Electro Optical Sensor System For Surveillance and Tracking2 - axis 4 - gimbal Air - borne Electro Optical Sensor System For Surveillance and Tracking
